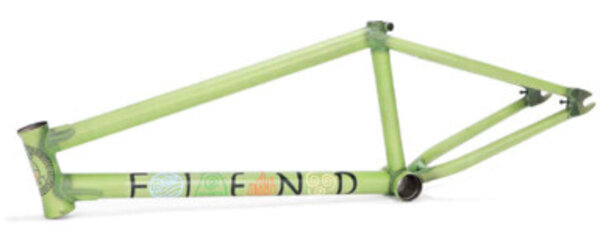

Fiend BMX Raekes Frame

Fiend BMX Raekes Frame
  • Color: ED BLACK
  • Color: EARTH GREEN
$539.99
Please select options

Details

Designed by Johnny Raekes and constructed with 4130 chromoly throughout. Features include heat-treated Mid bottom bracket shell and integrated 5" head tube(tapped for detangler tabs), double-butted top, ovalized down tube with external head tube gussets, externally gusseted seat tube with integrated post clamp, ovalized chain stays, tapered seat stays with Flush Mount brake lugs and 8mm thick investment cast dropouts with integrated chain tensioners. **Brake mounts and hardware sold separately.

*Due to the nature of semi-transparent paint finishes the character of the raw tubing
will be visible and may contain vein-like abnormalities making each frame unique.

Geometry:
20.6?, 20.8?, 21? top tube lengths
75.5* head tube (5" tall)
71* seat tube
9.5? seat tube height (bottom bracket to top tube, center to center)
11.6? Bottom Bracket Height
12.9? chainstays
5.2lbs. @ 20.75"

Part Numbers

Option UPC MPN Store SKU
ED BLACK / 20.6" 742776688180 FN-FR-206EDB
ED BLACK / 20.8" 742776688197 FN-FR-208EDB
ED BLACK / 21" 742776688203 FN-FR-210EDB
EARTH GREEN / 20.6" 742776688210 FN-FR-206TGR
EARTH GREEN / 20.8" 742776688227 FN-FR-208TGR 210000049900
EARTH GREEN / 21" 742776688234 FN-FR-210TGR
