Details

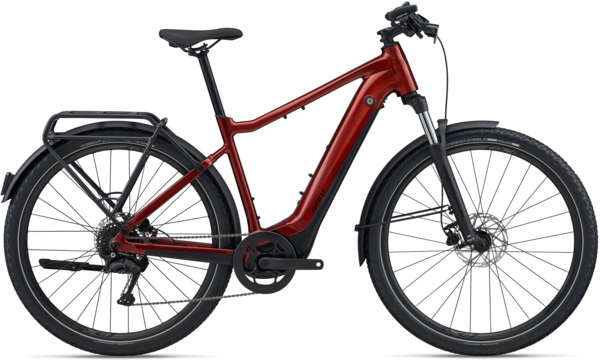

Built for adventure, the Explore E+ turns commutes and escapes into open horizons. With versatile design and seamless integration, it delivers smooth support, confidence, and freedom to ride farther—wherever the journey leads.
Key Performance Factors:
CONFIDENCE & COMFORT
Built for adventure, the Explore E+ is a highly capable and adaptable machine to discover new routes and new experiences on roads, gravel or dirt. With versatile design and seamless integration, it delivers smooth support, confidence, and freedom to ride farther—wherever the journey leads.
POWER THAT LASTS
Endurance comes from the EnergyPak 800 battery, running cooler and more efficient with up to 2300 charge cycles. Paired with the SyncDrive Pro 2 motor delivering 85Nm of torque, it makes climbs manageable and distance effortless. Smart Assist adapts support automatically, while E-Shift with belt drive* provides quiet, low-maintenance shifting for dependable power on every ride.
PROTECTION YOU TRUST
Safety and security are built into the Explore E+. Aegis safety technology includes E-Lock with alarm, Apple Find My for tracking, the Aegis Tire Checker for real-time pressures, and the Aegis Radar* to detect approaching vehicles. Integrated lighting syncs with Radar to increase visibility. Combined with racks, mounts, and a one-piece carrier, it’s a complete solution for connected, protected riding. *Belt drive and Aegis Radar are available on select models only.
Highlights:
The Explore E+ is built to expand what’s possible on every ride. Its modern frame introduces an elevated chainstay for quiet, low-maintenance drivetrains, while the one-piece rear carrier integrates lighting and radar-ready safety. At its core is the newly evolved E+ System: a 36-volt SyncDrive Pro 2 motor delivering 85Nm of torque and up to 400% support, paired with the long-lasting EnergyPak 800 battery and intelligent Smart Assist. A refined cockpit combines the RideDash Evo 2 display, RideControl Ergo 4 dual-sided remote, and RideControl Go 2 button for intuitive interaction, while E-Shift with belt drive* keeps every pedal stroke smooth. From daily commutes to cross-country escapes, the Explore E+ turns every route into an open horizon.

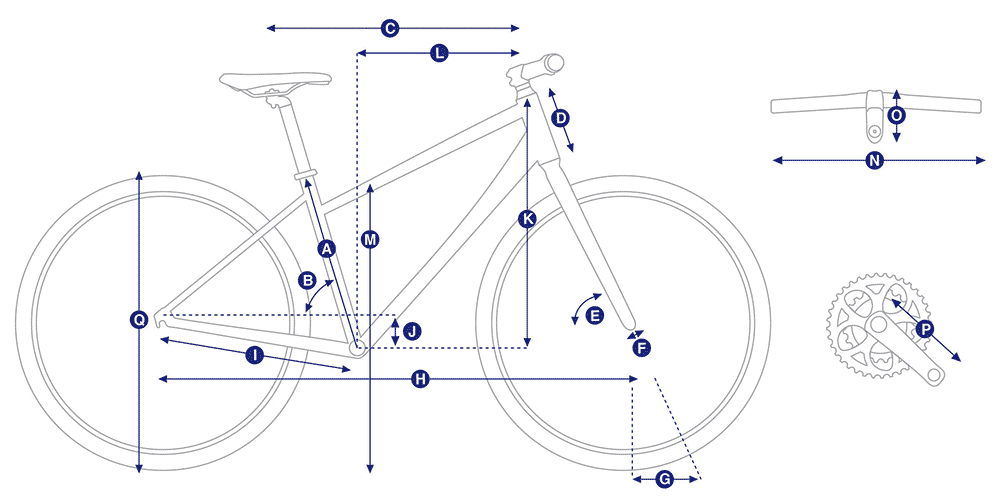

| M | L | XL | XXL | |
|---|---|---|---|---|
| A Seat Tube Length (mm) | 485 | 535 | 585 | 610 |
| B Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° |
| C Top Tube Length (mm) | 590 | 610 | 630 | 650 |
| D Head Tube Length (mm) | 140 | 155 | 170 | 185 |
| E Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
| F Fork Rake (mm) | 42 | 42 | 42 | 42 |
| H Wheelbase (mm) | 1121 | 1142 | 1163 | 1163 |
| I Chain Stay Length (mm) | 455 | 455 | 455 | 455 |
| J Bottom Bracket Drop (mm) | 60 | 60 | 60 | 60 |
| K Stack (mm) | 619 | 633 | 648 | 648 |
| L Reach (mm) | 400 | 416 | 432 | 432 |
| M Stand Over Height (mm) | 775 | 808 | 844 | 844 |
| N Handlebar Width (mm) | 690 | 690 | 690 | 690 |
| O Stem Length (mm) | 70 | 80 | 90 | 90 |
| Q Wheel Size | 700C | 700C | 700C | 700C |
| M | 5’7" to 5’10" |
|---|---|
| L | 5’9" to 6’1" |
| XL | 6’0" to 6’4" |
| XXL | 6’3" to 6’7" |
Specs
| Frame | Gen 3 ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount |
|---|---|
| Fork | SR Suntour XCM34 Boost DS 100mm travel 15AH4-110 axle |
| Rims | Giant GX03V, 622x21 Aluminium |
| Hubs | Giant eTracker Boost 6-bolt disc 15x110mm [F] 12x148mm [R] |
| Spokes | Stainless steel, e-bike optimized |
| Tires | Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready,w/ Reflection Strip |
| Crankset | Forged alloy spider w/chainguard BCD 104, steel narrow/wide chainring 46T |
| Shifters | Shimano Cues |
| Rear Derailleur | Shimano Cues 9-speed |
| Cassette/Freewheel | Shimano Cues, 11-36T, 9-speed |
| Chain | Shimano Linkglide CN-LG500 |
| Brakes | Tektro HD-M280, hydraulic disc, 180mm |
| Brake Levers | Tektro HD-M280 |
| Handlebars | Giant Connect Riser 31.8x690mm |
| Tape/Grips | Giant Contact |
| Stem | Giant Contour integrated 16°, (S/M:80mm L/XL/XXL 100mm) |
| Seatpost | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Selle Royal Vivo Ergo Moderate Unisex |
| Pedals | Anti-slip Platform |
| Accessories & Extras | Lighting: Recon E HL50 StVZO [F] AXA NYX 6-12V E-bike tail light [R], Lock: ABUS Xplus battery lock, Carrier: MIK System rack. MIK bag & basket compatible |
| Motor | Giant SyncDrive Sport2, 75Nm PedalPlus 6-sensor technology |
| Battery | Giant EnergyPak Smart 500Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production |
| Controller/Display | Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels, Giant RideControl Dash 2 high-angle visibility, full color LCD display |
| Charger | Giant EnergyPak 4A smart charger compact, 60% charge in 2:30h |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Mars Dust / Medium / 700c | 04711291246645 | 5060029255 |
| Mars Dust / Large / 700c | 04711291246560 | 5060029257 |
| Mars Dust / X-Large / 700c | 04711291246577 | 5060029258 |
| Mars Dust / XX-Large / 700c | 04711291246584 | 5060029259 |
| Stealth Chrome / Medium / 700c | 04711291246515 | 5060029155 |
| Stealth Chrome / Large / 700c | 04711291246522 | 5060029157 |
| Stealth Chrome / X-Large / 700c | 04711291246539 | 5060029158 |
